The requirement to tape all seams in a hard-shell jacket is determined by its core function of waterproofing and breathability. Below is an explanation from the perspectives of technical principles, functional necessity, and practical applications:
1. Seams Are the Weak Link in Waterproofing
Hard-shell jacket fabrics typically use waterproof membranes (e.g., GORE-TEX, ePTFE) or coatings (e.g., PU) to repel water. However, sewing creates tiny perforations in the fabric, which can allow rainwater to seep through if untreated. For instance, even with waterproof fabric, unsealed seams can reduce overall water resistance by over 90%.

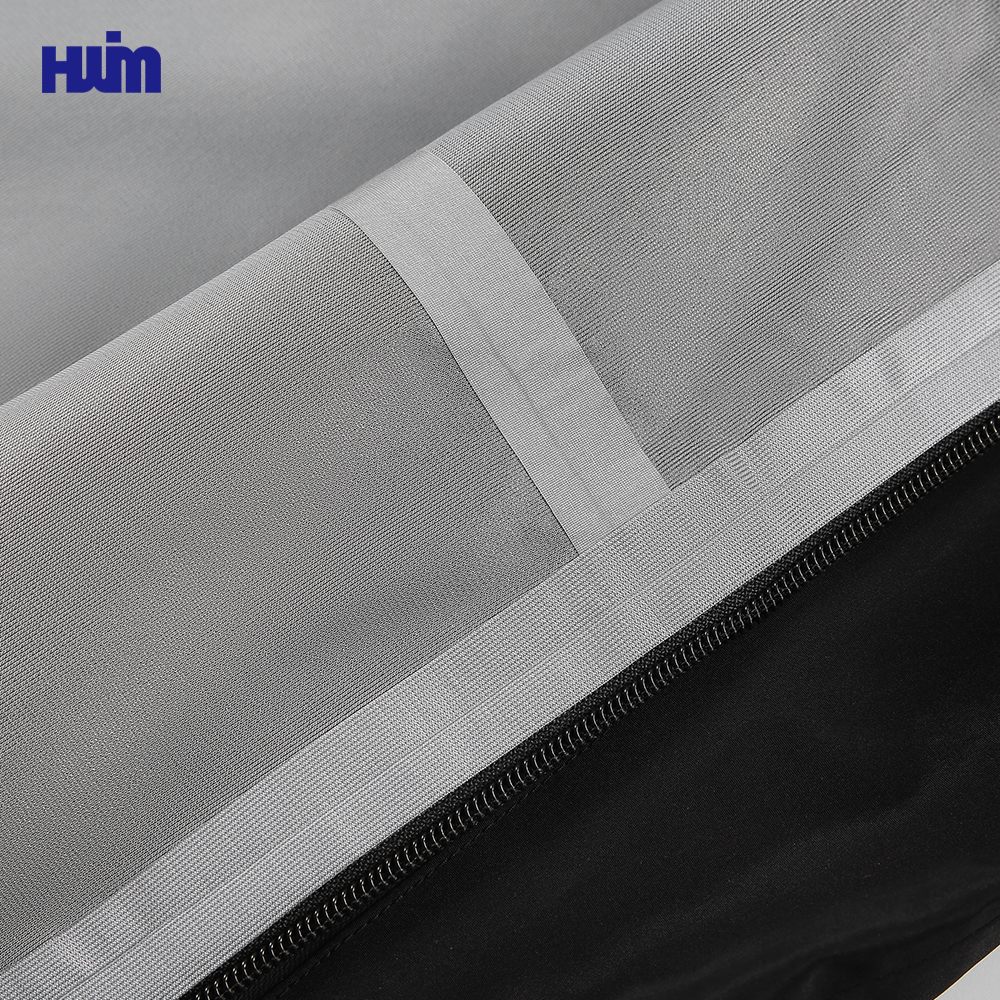

2. Technical Principles and Functions of Seam Taping
Seam taping involves applying a waterproof tape (usually TPU or PU) to the back of seams using heat, creating a sealed layer. Its key roles include:
- Physical Moisture Barrier: The tape covers sewing perforations to block water penetration.
- Fabric Integrity Restoration: The tape bonds with the fabric to restore the continuity of the waterproof membrane disrupted by sewing.
- Durability Enhancement: The tape reinforces seams, reducing the risk of thread breakage from washing or friction.
3. Variations in Seam Taping Processes
There are several seam taping methods, each tailored to different needs.
Standard taping, where a 5–8mm-wide tape is applied manually or by machine, suits basic waterproofing requirements, commonly used in mid-range hiking jackets and daily commuting gear. Seamless taping offers superior waterproofing, ideal for professional mountaineering and extreme sports. It covers the entire seam with heat-sealed edges, often achieving a waterproof rating of over 20K.
Laser taping, which uses laser-cut tape edges, provides precise adhesion and is lighter in weight, making it perfect for high-end minimalist designs favored by competition athletes.
Double taping, applied on both sides of the seam, offers dual protection with minimal leakage risk, but it adds extra weight and is typically used for polar expeditions or marine operations.
4. Impact of Taping Quality on Performance
- Tape Material: Inferior tapes may age, crack, or detach in cold conditions, such as hardening and peeling.
- Heat and Pressure Control: Inadequate heat weakens adhesion, while excessive pressure can damage the fabric membrane.
- Detail Treatment: High-movement areas like collars and cuffs require extra reinforcement to prevent tape detachment from repeated bending.
5. Industry Standards and Certification Requirements
Professional hard-shell jackets must pass waterproof and breathability tests, such as JIS L 1099 or ASTM E96, with seam waterproofing being a core metric. Premium products, especially those certified by GORE-TEX, have strict standards for tape width and adhesion strength. Without meeting these criteria, brands cannot use the related trademarks.
6. How Consumers Can Assess Taping Quality
- Visual Inspection: High-quality tape has smooth edges without bubbles, wrinkles, or excess adhesive.
- Tactile Test: The tape should feel soft and elastic, remaining flexible even in cold conditions.
- Water Resistance Check: Spray water directly on seams (while avoiding soaking to protect the membrane) and observe for any leaks.
Conclusion
Seam taping is a critical process that makes hard-shell jackets "all-weather proof," as essential as the waterproof fabric itself. Jackets with missing or poor-quality taping—even with high-rated fabrics—will leak at the seams, compromising their value as professional outdoor gear. This process also sets premium brands apart from budget products.
